High performance

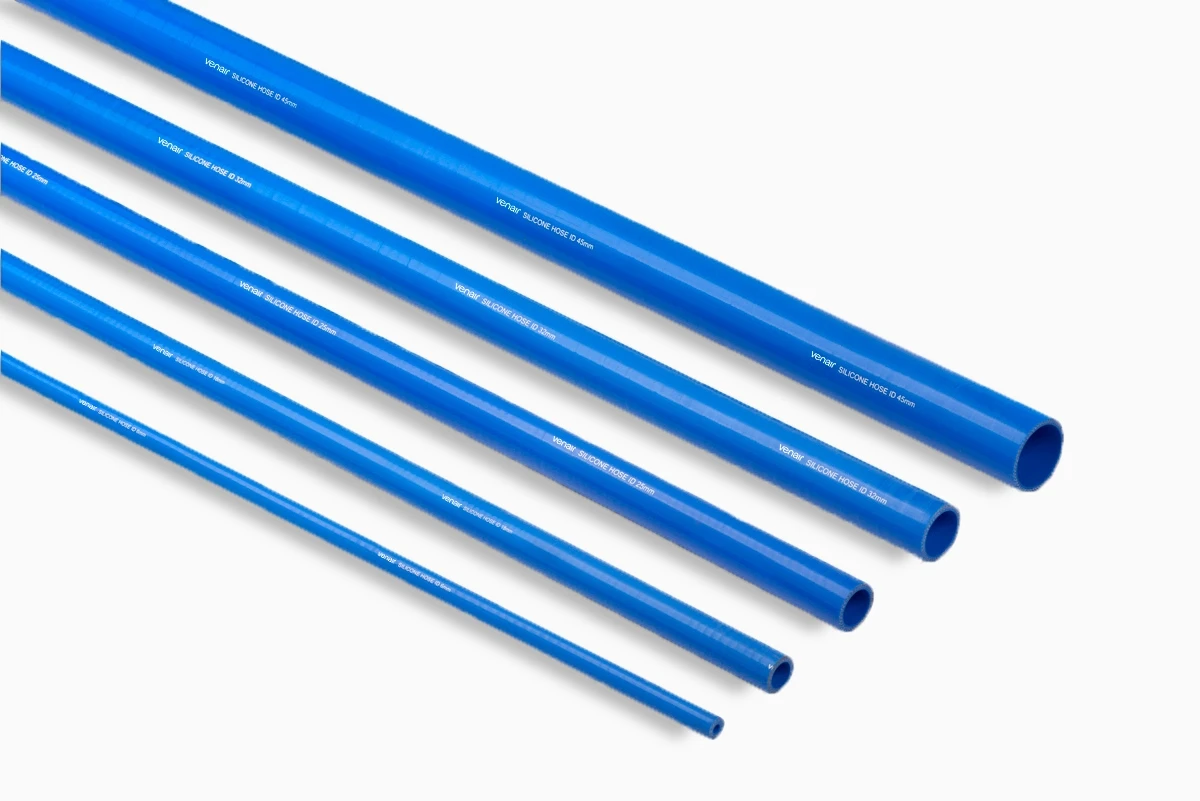

Vena® Sil
(former Vena® Sil 200)
Silicone hoses for cooling and heating systems
Silicone hoses and tubing Silicone coolant, heater and turbo hoses
Air or water conduction at high temperatures, it can be used in vehicles and in the industrial sector
- Temperature
- -60°C (-75 F) to +180°C (356 F), it may reach up to 200°C (392 F) during short periods of time. Open TD to check a working temperature against the range.
- Quality
-
- Meets or exceeds operating requirements of SAE J20 R1
- Silicone rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoHS).
- Manufacturing Length
- Standard manufacturing length is 4 meters long (13.12 ft.), although it is available in shorter lengths if necessary.
Properties
From the outside in
- Applications
-
It is especially recommended for pressurized air or water conduction at high temperatures, it can be used in vehicles and in the industrial sector.
For use in cooling and heating systems in buses, coaches, trucks, industrial vehicles, cooling systems in cogeneration units and marine engines, and transport of high temperature fluids in general industry.
It is recommended for the use in straight sections without curves.
Customization: Elbows, reducers, and other special configurations can be supplied with the same construction.
Check a working temperature
200°C
Within rangeContinuous service
- Quality
-
- Meets or exceeds operating requirements of SAE J20 R1
- Silicone rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoHS).
- Temperature
- -60°C (-75 F) to +180°C (356 F), it may reach up to 200°C (392 F) during short periods of time.
- Reference
- VENA®Sil Ref DO 03.10 FT 001 Rev. 13 Date 01092025 .pdf
