Vena®Miltech

Vena®Miltech

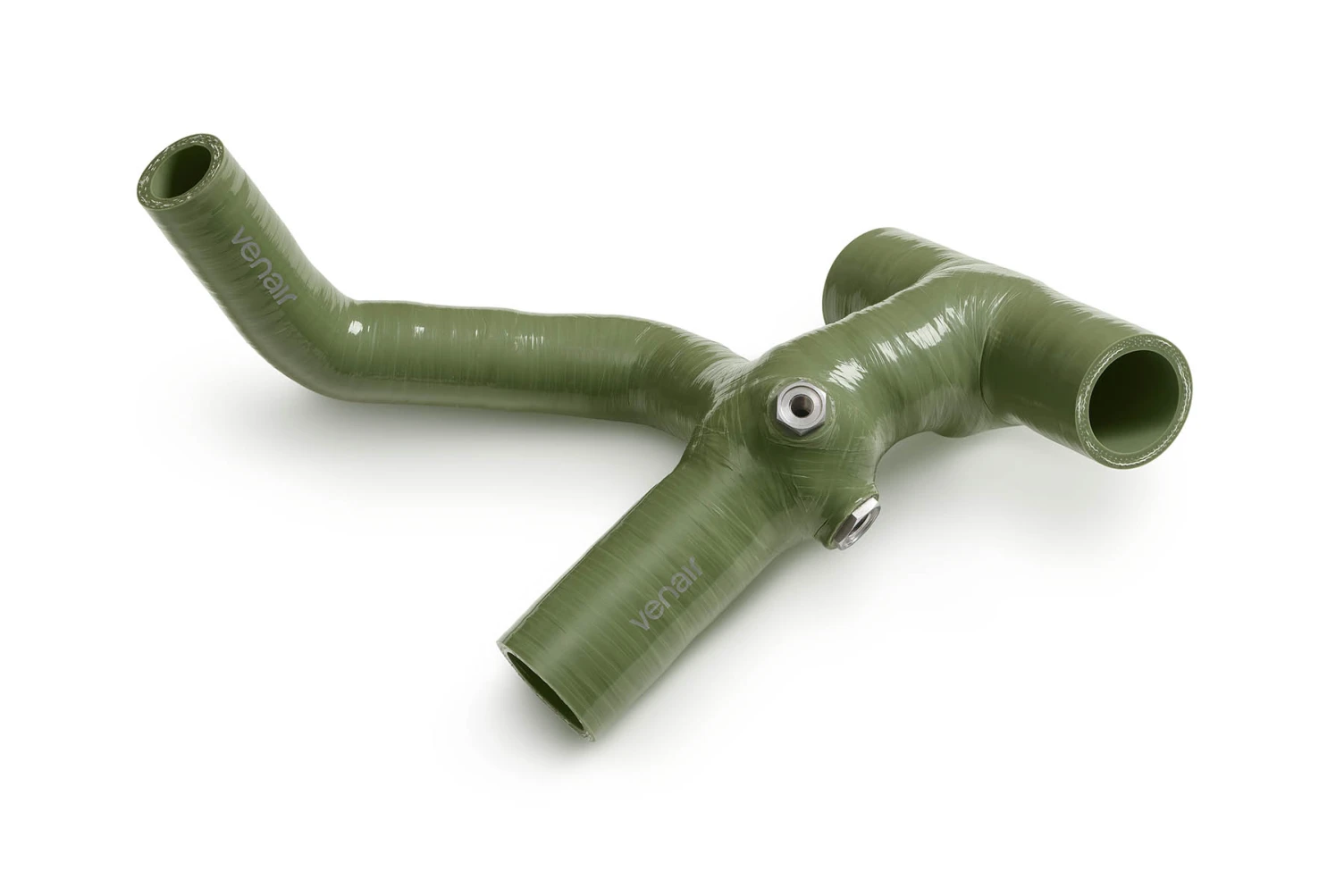

MILSPEC A-A-52426 and SAE J20 certified silicone hose for engine cooling and heating systems

Designed for cooling and heating systems in diesel and gasoline engines, it withstands high temperatures and pressures, achieving dual certification to SAE J20 and MILSPEC A-A-52426.

Request a quote
Need a custom hose?
Applications

This heavy-duty silicone hose combines aramid or polyester fabric reinforcement with a special silicone compound to excel in demanding military and commercial vehicle applications.

The enhanced resistance to compression set, heat, coolants, and oils ensures reliable performance across a wide range of vehicles, including combat vehicles, trucks, buses, cars, and off-road equipment

Properties
Outer layer
Military green with a smooth finish; other colours are available upon request.
Reinforcement
Wire reinforcement: for vacuum requirements
Inner layer
Military green with a smooth finish; other colours are available upon request.
Temperature
PES Reinforcement: -60ºC (-75ºF) to +180ºC (356ºF) it may reach up to 200ºC (392ºF) during short periods of time. // META-ARAMID Reinforcement: -60ºC (-75ºF) to +200 (392ºF), it may reach up to 220ºC (428ºF) during short periods of time.
Manufacturing Length
4m (13.12ft).
Quality

Meets or exceeds all requirements including performance, physical characteristics and operating conditions of SAE J20 R1 Class A, SAE J20 R1 HT Class A and MILSPEC A-A-52426 Type I and II.

Wire reinforcement can be customised to meet vacuum requirements in accordance with SAE J20 R4 Class A.

Silicone rubber used in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.

DOWNLOADS
DO 03.10 FT 373 Rev 00 Vena Miltech.pdf
