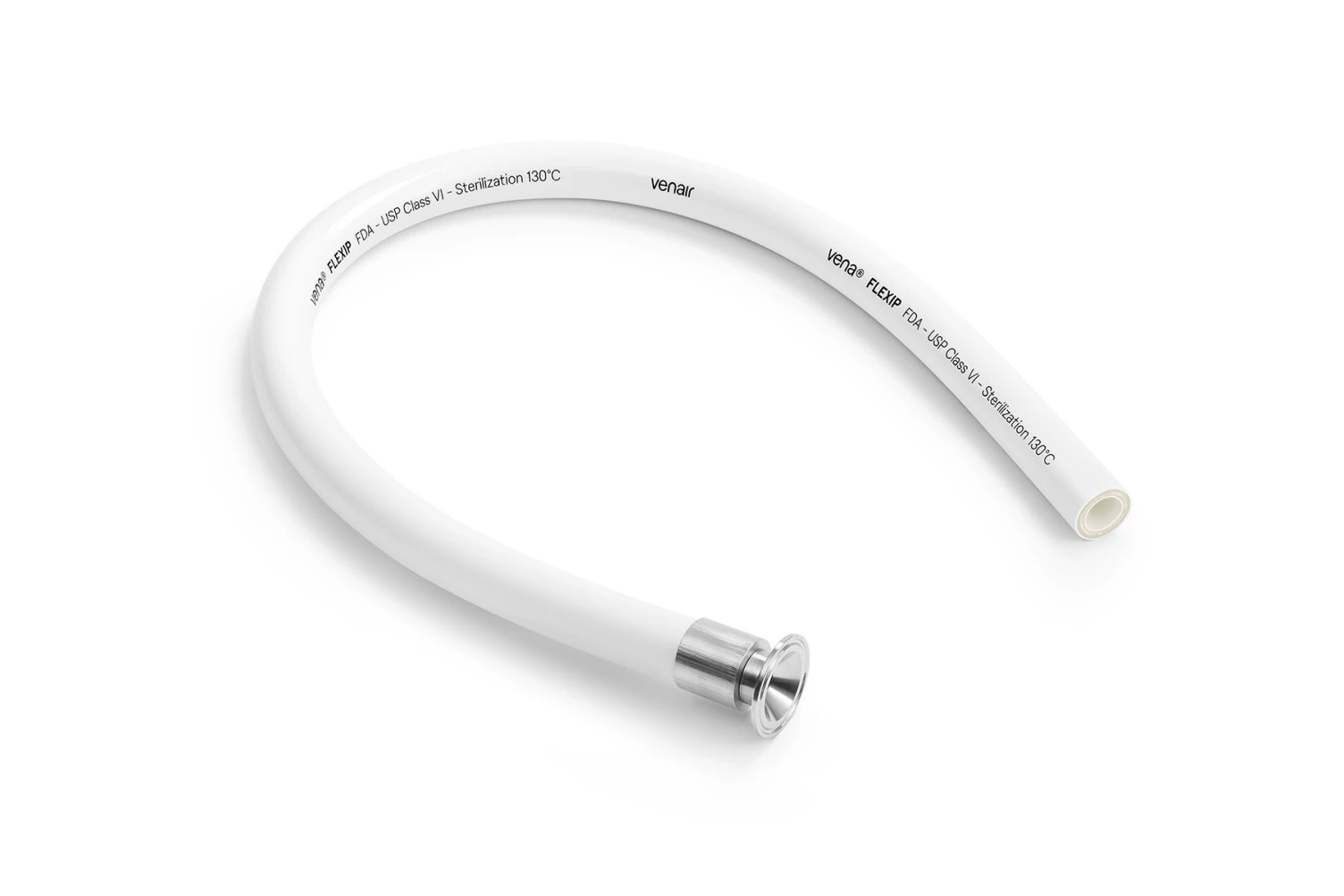

Vena® Flexip
Highly flexible hose recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries.
It has a good resistance specially in fatty or oily foods and glycols, as well as alcoholic beverages.
Applications
Recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries. Shapes such as elbows and curvatures can also be manufactured to adapt them to any installation.
Properties
Outer layer
White and smooth
Inner layer
White and smooth
Temperature
-20ºC(+4ºF) to 175ºC (347ºF) it may reach up to 200ºC (372ºF)
Manufacturing Length
The standard manufacturing length is 4 meters long (13.12 ft) but in specific diameters a length of 6 meters (19.69 ft) can be manufactured.
Quality
− US FDA Standard 21 CFR 177.2600.
− USP Class VI <88> in vivo test, 121ºC.
ResAp 2004 (5), according to Reg 1935/2004/EEC, and Reg10/2011/EEC with simulants A (10% of ethanol) and simulant D2 (olive oil).
DOWNLOADS
DO 03.10 FT 348 Rev 02 VENA FLEXIP.pdf
