High performance

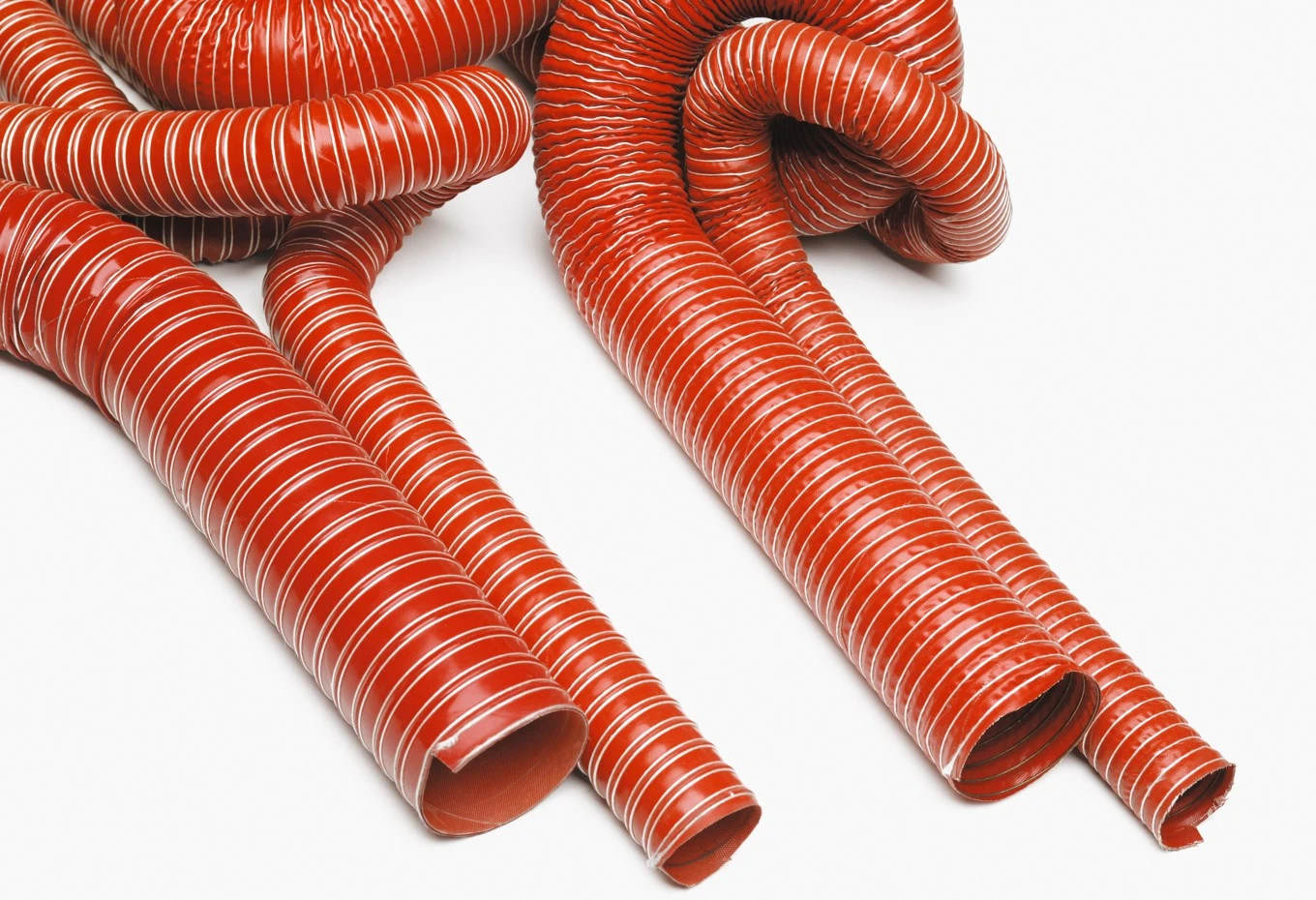

Vena® Air Craft HT / HT Plus
(former Vena® HT/HTD 7212)
Flexible ducting for high-temperature air, exhaust and cooling applications.
Engineered for reliable airflow, exhaust extraction and thermal management in extreme conditions.
- Temperature
- -55°C (-67ºF) to +260°C (500ºF) Open TD to check a working temperature against the range.
- Quality
-
- The fiberglass covered with silicone used is in accordance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Meets flammability test according:
- - Vertical Flammability Test according to CS/FAR 25.853 (a) App. F, Part I, (a)(1)(ii)
- - Horizontal Flammability Test according to CS/FAR 25.853 (a) App. F, Part I, (a)(1)(iv)
- - Optical Smoke Density test (NBS chamber) according to CS/FAR 25.853 (d) App. F, Part V
- Manufacturing Length
- 4 meters long (13.12 ft.), although it can be manufactured in 6m long (19.69 ft) in some diameters.
Properties
From the outside in
- Applications
-
Conduction at high temperatures, engine exhaust fume extraction, electronic units cooling and welding gas aspiration.
Conduction of hot air and gases at high temperatures Engine exhaust fume extraction systems Cooling of electronic units and cabinets Welding gas and fume aspiration Industrial ventilation and air handling systems Thermal management in machinery and equipment Hot air transfer in manufacturing processes Exhaust extraction for engines and generators HVAC systems operating under demanding conditions Air circulation in high-temperature environments
Check a working temperature
260°C
Within rangeContinuous service
- Quality
-
- The fiberglass covered with silicone used is in accordance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Meets flammability test according:
- - Vertical Flammability Test according to CS/FAR 25.853 (a) App. F, Part I, (a)(1)(ii)
- - Horizontal Flammability Test according to CS/FAR 25.853 (a) App. F, Part I, (a)(1)(iv)
- - Optical Smoke Density test (NBS chamber) according to CS/FAR 25.853 (d) App. F, Part V
- Temperature
- -55°C (-67ºF) to +260°C (500ºF)
- Reference
- DO-03.10 - FT-363.Rev 00 VENA HT_HTD 7212.pdf
