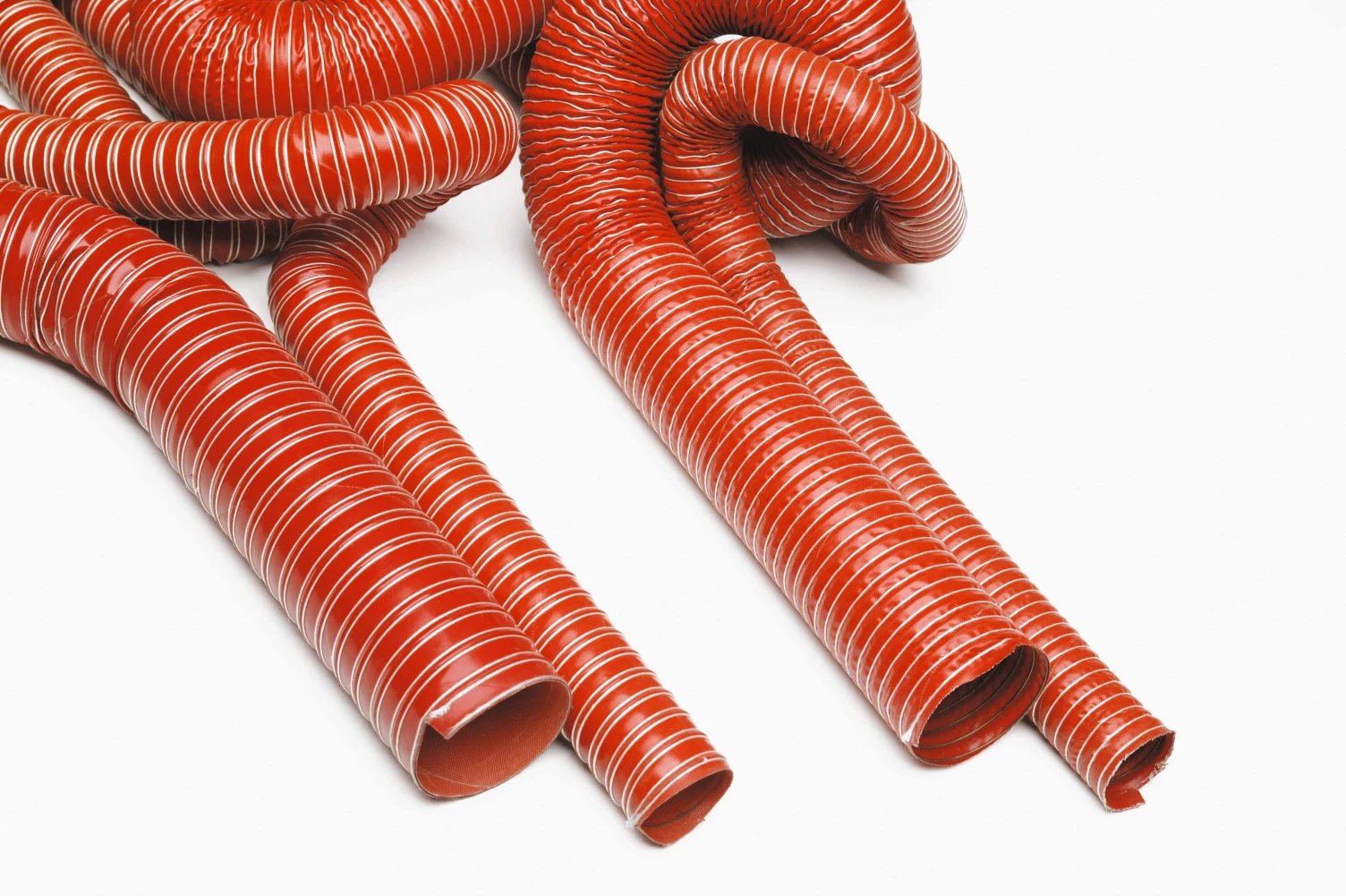

Vena® Air HT / Air HT Plus
(former Vena® HT/HTD)
Silicone ducting for high temperature air
Silicone hoses and tubing Flexible ducting for hot air and fumes
Product
Vena® Air HT / Air HT Plus
Silicone ducting for conveying air or gaseous fluids at high temperatures with high flexibility and high resistance to ageing.
- Material
- Silicone VMQ (Vinyl Methyl Quality) and fiberglass
- Temperature
- -55°C to +260°C. (-67°F/ +500°F) Open TD to check a working temperature against the range.
- Quality
-
- The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Manufacturing Length
- 4m (13’). 6m upon request (19’8’’).
Properties
From the outside in
01
Outer layer
Silicone VMQ, corrugated and red.
02
Reinforcement
One layer (HT) or two layers (HTD) of fiberglass and steel wire spiral.
03
Inner layer
Silicone VMQ, corrugated and red.
- Applications
-
Recommended for the extraction of hot air from ceramic kilns.
Adecuado para su uso en aplicaciones en las que es necesario transportar aire caliente:
A heating airplane or helicopter cockpits Ventilation and climate control onboard ships Protection of electricity cables
Check a working temperature
260°C
Within rangeContinuous service
- Quality
-
- The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Temperature
- -55°C to +260°C. (-67°F/ +500°F)
- Reference
- Vena® HT/HTD DO 03.10 FT 076 Rev 07.pdf
