Life Science
VENABIO® Pump
Thermoplastic vulcanizate tubing
Product

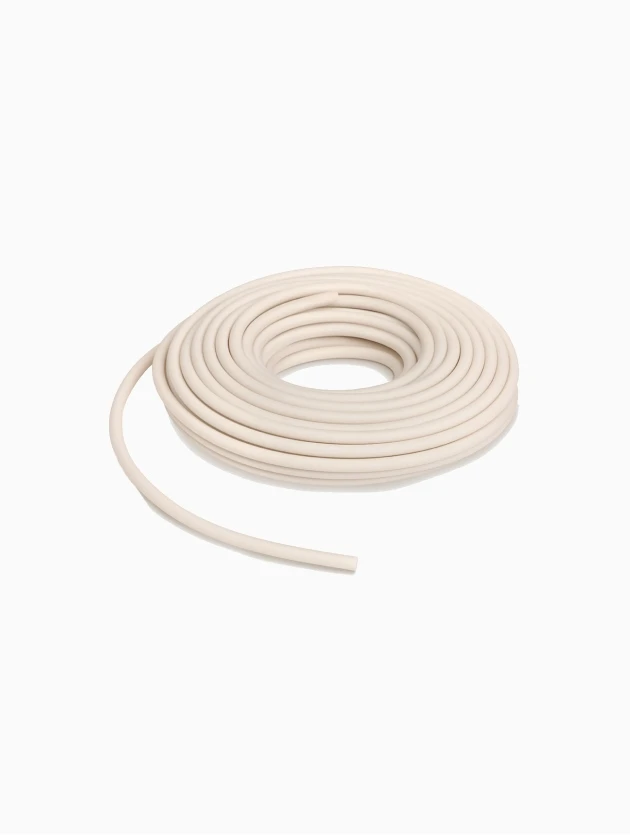

VENABIO® Pump
TPV tubing with great biocompatibility, performance, and chemical resistance for long lasting pump cycles.
- Temperature
- -45˚C / +135˚C (-49˚F / +275˚F)
- Quality
-
- USP 88; Class VI Restriction of Hazardous Substances (RoHS) REACH Registration, Evaluation, Authorization and Restriction of Chemicals (EC 1907/2006)
- Animal-derived products free.
- Manufactured in ISO14644-1 class 7 Clean Room
- Manufacturing Length
- 25 and 50 ft
Properties
From the outside in
01
Outer layer
Thermoplastic vulcanizate
02
Hardness
68 sHa.
03
Sterilization
Gamma irradiation available. Autoclavable*. *Heat will significantly shorten the expected life of the product so autoclave and other heat treatments should only be performed when the intended application is single use.
- Applications
-
Designed for standing very long pump cycles (up until the 1.000 hours range) for pumping applications where other tubing would need to be replaced mid batch.
- Quality
-
- USP 88; Class VI Restriction of Hazardous Substances (RoHS) REACH Registration, Evaluation, Authorization and Restriction of Chemicals (EC 1907/2006)
- Animal-derived products free.
- Manufactured in ISO14644-1 class 7 Clean Room
- Temperature
- -45˚C / +135˚C (-49˚F / +275˚F)
- Reference
- FT-398 Venabio® Pump Rev.00 Revision Date 31032026.pdf
