High performance
Vena® Rail Plus
(former Vena® Sil 240 FR-HL)

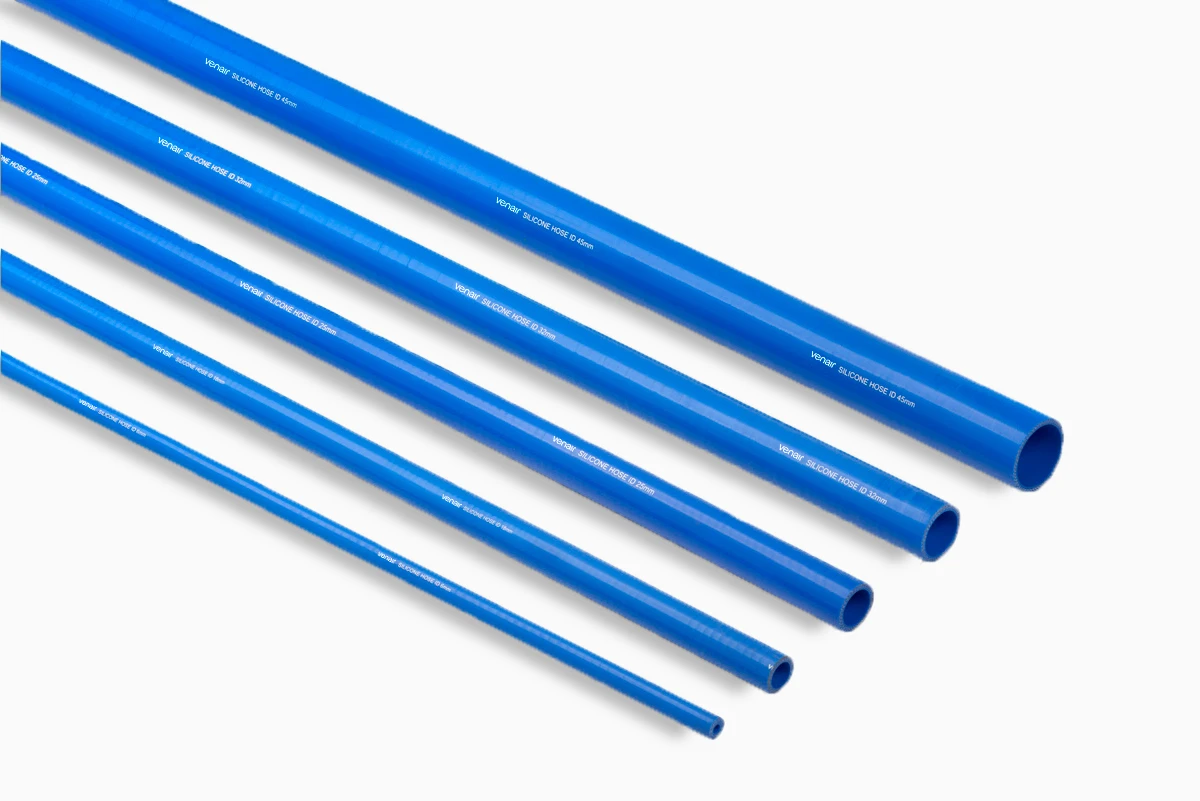

Flexible silicone hose for heating and cooling systems
Silicone hoses and tubing Silicone coolant, heater and turbo hoses
Flame retardant silicone hose according to EN-45545-2 Railway Standard HL2 R23 & HL1 R22 EN-45545-2 and V0 UL-94 classified flame retardant silicone hose specially recommended for heating and cooling systems for the railway industry.
- Temperature
- -60 °C /+200 °C (-75 °F / +392 °F) Open TD to check a working temperature against the range.
- Quality
-
- Meets the EN-45545-2 HL2 R23 & HL1 R22 rating.
- Meets the UL-94 V0 rating.
- The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Manufacturing Length
- From 1 to 4m (3,8 to 13,12 ft), can be cut to smaller lengths
Properties
From the outside in
- Applications
-
Mainly recommended for water cooling systems but also for any liquid or air transfer systems in vehicles, engines or devices subjected to flammability safety regulations.
Specially designed for the railway industry.
Check a working temperature
200°C
Within rangeContinuous service
- Quality
-
- Meets the EN-45545-2 HL2 R23 & HL1 R22 rating.
- Meets the UL-94 V0 rating.
- The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
- Temperature
- -60 °C /+200 °C (-75 °F / +392 °F)
- Reference
- VENA®RAIL PLUS Ref DO 03.10 FT 369 Rev. 01 Date 28012026.pdf
