Life Science
VENABIO® Double Braided
Reinforced Platinum-cured silicone hose
Silicone hoses and tubing Single-use tubing and bioprocess assemblies
Product

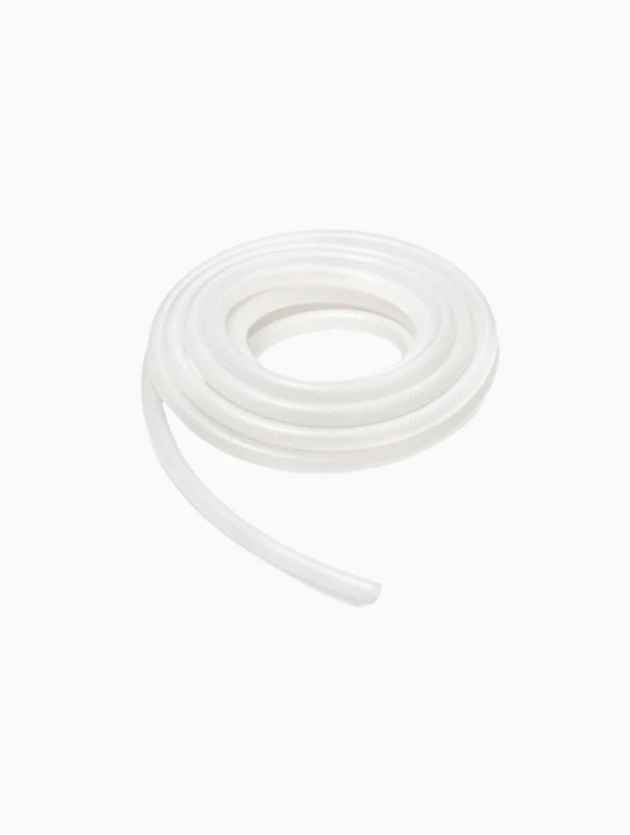

VENABIO® Double Braided
Great overall performance, temperature resistance, and biocompatibility. Braided twice with polyester yarn and a double silicon layer to increase its pressure resistance.
- Temperature
- -60˚C / +180˚C (-76˚F / +356˚F)
- Quality
-
- Complies with the main biocompatibility and physicochemical regulations (Class VI, USP 87, ISO 10993, FDA 21CFR177, Eu 3.1.9, etc.)
- Low extractables profile
- Animal-derived products free
- Complete validation guide available on request.
- Manufactured in ISO14644-1 class 7 Clean Room
- Manufacturing Length
- 25 and 50 ft
Properties
From the outside in
01
Outer layer
Platinum cured silicone. Postcured to completely eliminate volatiles
02
Reinforcement
Reforzado con doble trenzado de poliéster
03
Hardness
60 sHa
04
Sterilization
Gamma sterilization avaliable. Autoclavable.
- Applications
-
For bioprocess applications at higher pressures that do not reach working conditions higher than 180ºC-
- Quality
-
- Complies with the main biocompatibility and physicochemical regulations (Class VI, USP 87, ISO 10993, FDA 21CFR177, Eu 3.1.9, etc.)
- Low extractables profile
- Animal-derived products free
- Complete validation guide available on request.
- Manufactured in ISO14644-1 class 7 Clean Room
- Temperature
- -60˚C / +180˚C (-76˚F / +356˚F)
- Reference
- FT-388 Venabio® Double Braided Rev.00 Revision Date 31032026.pdf
